Data Modeling Best Practices for Modern BI

Think of data modeling best practices as the strategic rulebook that turns a mountain of raw data into something truly valuable: a reliable, high-performance asset. It's about creating a structured blueprint for your information to ensure it's consistent, easy to get to, and actually lines up with what the business is trying to achieve. Without it, you're just inviting chaos.

Why a Data Model Is Your Blueprint for Success

Ever tried to build a house without a blueprint? You might end up with four walls and a roof, but the whole thing would be inefficient, unstable, and a nightmare for anyone else to understand or fix. The plumbing could end up on the wrong side of the house, and trying to add a window might bring a wall down. That's exactly what happens when businesses skip proper data modeling.

A well-designed data model is your architectural plan, but for data. It's not just some technical exercise for engineers to geek out on; it's the strategic foundation that makes all of your analytics trustworthy. It brings order to the chaos, clearly defining how different pieces of information relate to each other and creating a common language everyone in the company can understand.

From Data Chaos to Business Clarity

Without a solid model, different teams inevitably end up in their own little worlds. Marketing might define a "customer" one way, while the sales team defines it another. The result? Conflicting reports, endless meetings trying to figure out who's right, and a whole lot of wasted time. This is what happens when you manage information in disconnected systems. Understanding the fundamental differences between spreadsheets and databases really highlights why the structure of a database is what makes this kind of robust modeling possible in the first place.

A strong data model cuts through all that noise by creating a single source of truth. It makes sure that when someone asks, "What was our revenue last quarter?" the answer is the same every time—accurate, consistent, and trustworthy, no matter who pulls the report.

A data model translates business requirements into a technical specification. It’s the bridge that connects what the business wants to know with how the data can provide those answers.

The Foundation for Growth and Speed

At the end of the day, we collect data to make better, faster decisions. A well-structured data model is what makes that happen. By organizing information specifically for analysis, it becomes the engine that powers everything from simple dashboards to complex predictive models. This structure is a non-negotiable part of any serious analytics system. For a deeper dive, our guide on business intelligence and data warehousing explains how these models fit into the bigger BI ecosystem.

This thoughtful design is the difference between a report that chugs along for hours and an insight that pops up in seconds. It’s what lets you finally leave slow, confusing spreadsheets behind and move toward the kind of fast, reliable analytics that actually fuel growth.

Understanding the Three Layers of Data Models

Great data modeling isn't a single event; it's a journey from a big-picture business idea to a real, working database. I like to think of it like building a house. You don't just start laying bricks. First, you have the architect's high-level sketch, then the detailed blueprints, and finally, the construction plans for the crew on the ground.

Each step in this process adds more detail and translates business needs into increasingly technical specs. This phased approach ensures everyone, from the CEO to the database admin, is on the same page. Skipping a layer is like building a house without blueprints—you’re bound to end up with something that doesn’t quite match the vision.

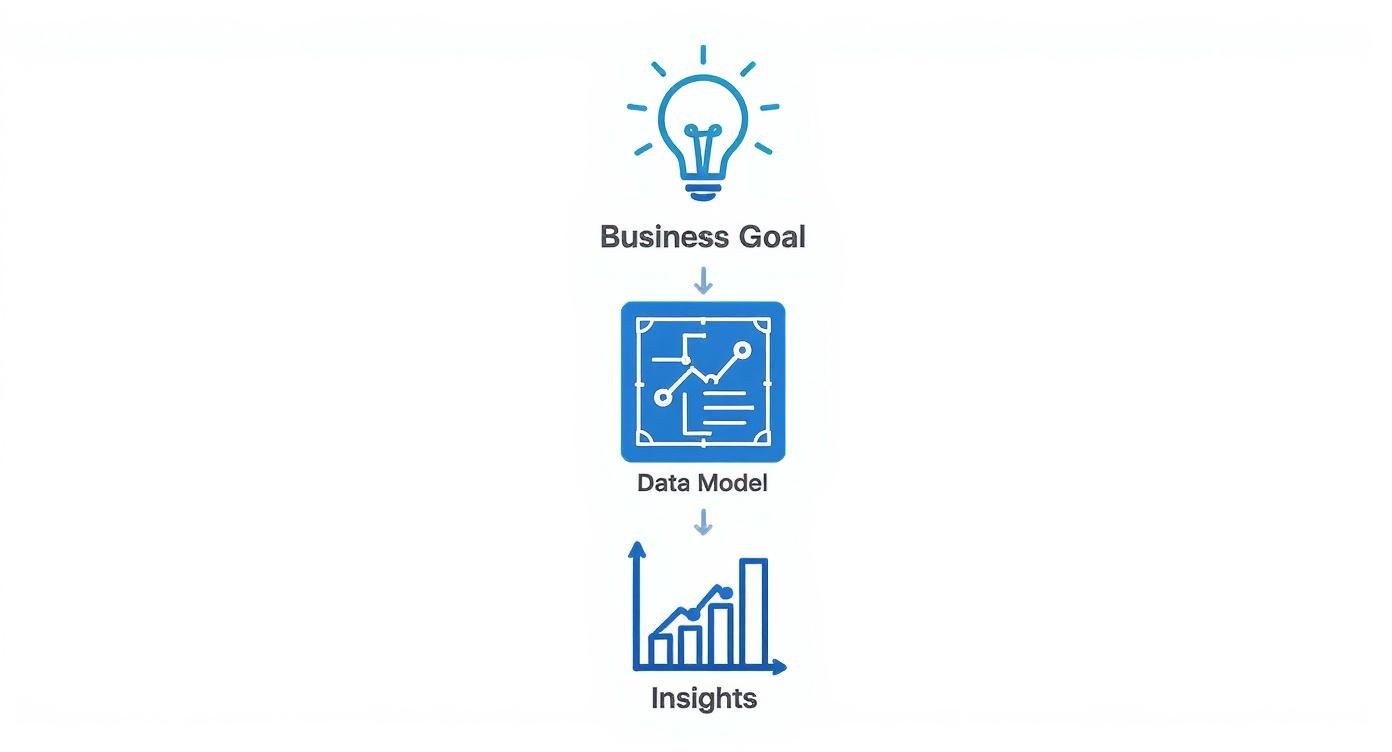

This diagram shows how a clear business goal is filtered through the data model to create real, actionable insights.

As you can see, the data model is the essential bridge that turns abstract goals into a structured format that BI tools can actually use.

To really get a feel for how these models work together, let's compare them side-by-side.

Comparing the Three Types of Data Models

This table gives you a quick snapshot, but let's dive into what each layer really means in practice.

The Conceptual Model: The Vision

Think of the conceptual model as the 30,000-foot view. It’s the simplest, most abstract layer, focusing purely on what the business cares about. We're talking about identifying key concepts—the "nouns" of the business like customers, products, and sales—and how they relate to each other.

This model is intentionally non-technical. You won't see any mention of data types or server configurations here. It’s all about speaking the language of the business, which makes it the perfect tool for getting buy-in from stakeholders and executives who don’t need to get lost in the technical weeds.

• Audience: Business stakeholders, executives, project managers.

• Purpose: To define the project's scope and map out key business entities.

• Example: A simple diagram showing that a "Customer" can "place" many "Orders," and each "Order" contains multiple "Products."

The Logical Model: The Blueprint

Once everyone agrees on the high-level vision, we move to the logical model. This is the architect’s detailed blueprint. It takes the concepts from the previous stage and fleshes them out with much more structure and precision.

Here, an entity like "Customer" gets defined with specific attributes: CustomerID, FirstName, LastName, and Email. We start defining the rules and relationships that will govern the data.

Crucially, the logical model stays technology-agnostic. It doesn't care if you're using PostgreSQL or SQL Server. This separation is powerful because it allows architects to design the perfect data structure based on business logic, not the limitations of a specific platform.

The logical model is the essential translator between business requirements and the physical database. It’s where business terms get turned into a structured format that a technical team can run with.

The Physical Model: The Construction Plan

Finally, we arrive at the physical model—the detailed construction plan. This is where the logical blueprint gets translated into a specific, ready-to-build database design. All the technical nuts and bolts come into play now.

This model dictates the exact table names, column names, and data types (like VARCHAR(255), INT, or TIMESTAMP). It also defines primary keys, foreign keys, indexes, and other database-specific elements that are critical for performance. It’s tailored to a particular database management system (DBMS) because how data is stored and retrieved matters a lot. This model is literally the script a DBA would use to bring the database to life.

Interestingly, the logical model's role in separating business rules from the underlying technology is a core principle behind semantic layers. You can learn more in our guide covering the key concepts and benefits of semantic layers.

Core Principles for Scalable and Efficient Models

So, you understand the different layers of data modeling. Now, let's get into what separates a fragile, confusing model from one that's resilient and genuinely useful. These are the core principles that turn a technical diagram into a long-term business asset—the kind that delivers fast queries and trustworthy data.

Getting this right isn't just a "nice-to-have." The impact is real. A 2024 survey of over 1,200 organizations found that 57% reported significant improvements in their decision-making after adopting these practices. For instance, simply defining a clear data grain led to a 40% reduction in data inconsistencies. Similarly, using standardized naming conventions cut analyst confusion by 50%. It’s a direct line from thoughtful design to better business outcomes.

This kind of structured approach is what tames a chaotic web of data into an organized system that’s actually ready for analysis. Let’s break down the most critical principles you can put into practice today.

Establish a Clear Grain Definition

If you take only one thing away from this guide, let it be this: define the grain of your data. The grain answers one simple question: "What does a single row in this table represent?" Is it one customer? One product sale? One click on an ad?

Without a clear answer, you’re setting yourself up for disaster. Imagine a table that mixes daily and monthly sales figures in the same column. If you try to sum that column, you’ll get a massively inflated, meaningless number. This is one of the most common ways reporting errors creep in and erode trust in the data.

By explicitly stating the grain for every single table, you’re creating a contract. This contract is the unbreakable rule that governs all analysis, ensuring every calculation is accurate and every report is consistent.

Let's look at an e-commerce model as an example:

• orders table grain: One row represents a unique order placed by a customer.

• order_items table grain: One row represents one specific product within an order.

• daily_sales_summary table grain: One row represents the total sales for one product on one day.

Each grain has a specific analytical purpose. Keeping them separate is the secret to preventing accidental double-counting and ambiguous reports.

Implement Standardized Naming Conventions

As your data model grows, consistency becomes your best friend. A standardized naming convention is like a style guide for your data; it makes everything intuitive for anyone who needs to use it. It gets rid of the guesswork and dramatically cuts down the time it takes to get new analysts up to speed.

You don't need anything complicated. A simple, consistent framework makes all the difference. Try these guidelines:

• Table Naming: Use plural nouns (like customers, products, or orders). For aggregated data, be descriptive (like daily_user_activity).

• Column Naming: Use snake_case (lowercase words separated by underscores) and be specific. created_at is always better than crt_d.

• Identifier Columns: Clearly label primary keys (customer_id) and foreign keys (order_id) so the relationships between tables are obvious at a glance.

This kind of consistency means that when an analyst sees order_id in five different tables, they know instantly that it refers to the exact same thing.

Design for Modularity and Flexibility

Business priorities shift, and your data model has to be able to adapt without requiring a complete, painful overhaul. The best way to do this is with a modular design. Think of it like building with LEGO bricks instead of carving something out of a single block of stone.

Rather than creating one giant, monolithic table with hundreds of columns, you can build smaller, focused "marts" or schemas for different departments like Marketing, Sales, or Finance. These modules can then be joined together when needed. This approach has some huge advantages:

1. Easier Maintenance: Updating a single module is far less risky than messing with a giant, interconnected model.

2. Improved Performance: Queries run much faster when they only have to scan smaller, highly relevant tables.

3. Enhanced Scalability: Need to add a new data source? Just build a new module instead of redesigning the whole system.

By thinking in modules, you build a data model that works efficiently today and is resilient enough to evolve with your business tomorrow. To dig deeper into managing large datasets in a scalable way, you might want to look into efficient data pagination techniques.

How Dimensional Modeling Powers Modern Analytics

In modern analytics, two things are king: speed and clarity. Business decisions happen in real-time, so you simply can't afford to wait hours for a critical report to load. This is exactly why dimensional modeling became the gold standard for anyone serious about business intelligence. It’s an approach built from the ground up for high-speed, intuitive data analysis.

Instead of organizing data to save storage space (the main goal for operational databases), dimensional modeling structures it to make asking questions—and getting answers—incredibly fast. It does this by splitting data into two types of tables that just make sense to the human brain.

Understanding Facts and Dimensions

At the heart of dimensional modeling are two beautifully simple concepts: facts and dimensions.

• Fact Tables: These are the keepers of your business metrics—the numbers. Think of them as recording "what happened." For an online store, a fact table would hold the raw figures like order_total, quantity_sold, or discount_amount. These are the numbers you'll be adding up, averaging, and slicing into.

• Dimension Tables: These tables give context to your facts. They answer the crucial "who, what, where, when, and why" behind the numbers. In that same online store, dimensions would be things like customers, products, and dates, holding the descriptive details like customer names, product categories, or store addresses.

This separation is the secret sauce. It keeps your core performance numbers clean and easy to work with, while surrounding them with all the rich detail you need for a truly deep analysis.

The Power of the Star Schema

The most common way to arrange these fact and dimension tables is in a star schema. The name is perfect because it actually looks like a star: a big fact table sits in the middle, with smaller dimension tables branching off of it.

Let's stick with our e-commerce example. The sales_transactions table would be our central fact table. It's then directly connected to dimension tables like dim_customer, dim_product, and dim_date.

This diagram shows a classic star schema for a sales data warehouse.

You can see the FactSales table right in the center, linked out to its descriptive dimensions. This structure makes it incredibly easy to "slice and dice" sales data by time, location, or product details. It’s so efficient because an analyst can join the central fact table with any dimension they want without the messy, multi-level joins that grind traditional queries to a halt.

There's a reason this approach is everywhere. Its elegant simplicity and raw performance have made it the go-to technique for analytics, with adoption rates hitting over 80% in major markets. One study even found that companies using well-designed dimensional models saw their query speeds jump by up to 60% compared to other structures. You can dig deeper into how dimensional modeling boosts performance at OWOX.com.

Tracking History with Slowly Changing Dimensions

Here’s a tricky but common problem: business details change. A customer moves, a product gets a new category, a sales region is redrawn. If your data model doesn't track these changes, your historical reports will be flat-out wrong.

This is where the technique of Slowly Changing Dimensions (SCDs) saves the day. It's a method for managing historical data right inside your dimension tables. The most popular version is called Type 2 SCD.

With a Type 2 SCD, instead of just overwriting old information when something changes, you add a new row to capture the new state. The old row isn't deleted; it's simply marked as "inactive" or given an end date.

Imagine a customer moves from New York to Los Angeles. Here's how it would work:

1. The original row showing the customer in New York is updated with an "end date" to show it's no longer current.

2. A brand new, active row is created for that same customer, this time with the updated Los Angeles address.

This preserves history perfectly. Sales from last year are still correctly tied to the New York location, while any new sales are properly linked to Los Angeles. It’s this historical accuracy that makes trustworthy, interactive dashboards and self-service analytics possible.

Building AI-Ready Data Models for the Future

https://www.youtube.com/embed/9lBTS5dM27c

Artificial intelligence and machine learning aren't just buzzwords on the horizon; they are here, and they're reshaping business intelligence. When it comes to making these technologies work, the quality and structure of your data model is the single most important factor determining success or failure.

Think of it this way: an AI algorithm is like a world-class chef. It can create something incredible, but only if you give it high-quality, well-organized ingredients. AI thrives on clean, context-rich, and perfectly structured data to generate accurate predictions. A flimsy or poorly designed data model is often why AI projects fail—it feeds the algorithm confusing information, leading to unreliable results.

This isn't just a niche concern. By 2025, it's predicted that over 75% of data models will be built to incorporate AI and machine learning. At the same time, some studies warn that up to 60% of AI projects might get scrapped simply because the underlying data infrastructure isn't ready. The takeaway is clear: solid data modeling is the non-negotiable foundation for any successful AI initiative. You can get more insights on the rise of AI in data modeling on wherescape.com.

Designing for Intelligent Systems

So, what exactly does an "AI-ready" data model look like? It's not a complete reinvention of the wheel. It starts with all the best practices we've already covered but puts a much stronger emphasis on a few key areas. You're essentially preparing your data to be consumed by algorithms, not just analyzed by people.

These models are built around three core pillars:

• Impeccable Data Quality: AI is incredibly sensitive to noise—inconsistencies, missing values, and outliers can throw an entire model off. An AI-ready model has strict validation rules and cleansing processes baked in to keep the data pristine.

• Clear Data Lineage: Algorithms need to understand the story behind the data. Documenting where data comes from, what transformations it went through, and how it connects to other datasets gives the model vital context, which almost always improves accuracy.

• Thoughtful Feature Engineering: This is the creative process of selecting, transforming, and creating the variables (or "features") that an AI model will learn from. A well-designed data model makes this process infinitely easier by keeping data logically organized and easy to access.

From BI Foundation to AI Launchpad

Getting your data ready for AI might sound like a massive undertaking, but it all comes back to the fundamentals of good data modeling. Establishing a clear grain, using consistent naming conventions, and building a modular design aren't just good habits for traditional BI—they are the essential building blocks for any system that needs to support advanced analytics.

An AI-ready data model isn't some separate, mystical creation. It's the natural evolution of a well-architected data model built for clarity, scalability, and trust from the very beginning.

Before you jump into a new AI project, you have to take an honest look at your current data landscape. Understanding the existing structure, quality, and accessibility of your data is the first and most critical step. You can dive deeper with our guide on how to assess data readiness for AI adoption.

Ultimately, the effort you put into solid data modeling practices today pays off twice. It powers the reliable dashboards and reports your business depends on right now, and it builds the launchpad you'll need for the next wave of innovation driven by AI.

Putting Best Practices into Action with BI Tools

Knowing the theory behind data modeling is great, but the real magic happens when you put it into practice. Thankfully, you don't need a Ph.D. in database administration to get it right. Modern Business Intelligence (BI) platforms are built to help you apply these principles, acting as a powerful bridge between abstract concepts and a high-performing data model.

Think of a good BI tool as your workshop, complete with smart assistants. Instead of manually coding every relationship or enforcing every business rule from scratch, you get an intuitive, visual workspace that guides you through the process. This makes data modeling accessible to a much wider audience, empowering people across the business to build and manage their own data models.

Visual Interfaces and Automated Workflows

The first thing you'll notice with a modern BI tool is the visual canvas. You can actually see your tables, columns, and the lines connecting them in a clean, interactive diagram. This is worlds away from staring at lines of code and trying to map out a complex schema in your head.

Platforms like Querio go even further by baking in intelligent features that do a lot of the heavy lifting for you. These tools often include:

• Automated Relationship Detection: The system can scan your tables and suggest logical links based on common column names and data types. For instance, it will spot order_id in your Orders table and automatically suggest connecting it to the order_id in your Payments table.

• Drag-and-Drop Joins: Forget writing complicated SQL JOINs. You can just draw a line between two tables to connect them. This simple action dramatically cuts down on syntax errors and makes the whole process feel more natural.

• Data Type Inference: When you import data, the platform can intelligently guess the right data types for your columns—like number, text, or date. This saves a ton of manual cleanup and helps ensure your data is consistent right from the start.

Modern BI tools democratize data modeling by translating complex technical tasks into simple, visual actions. This empowers teams to focus on the business logic of their model rather than getting bogged down in the technical implementation.

Enforcing Governance and Consistency

Beyond just building the model, BI tools are critical for keeping it clean and reliable over time. They act as built-in guardrails, helping you enforce the very best practices we’ve been talking about so your model remains a trustworthy source of truth.

Take standardized naming conventions, for example. A BI tool gives you one central place to rename and organize tables and columns. Instead of running a bunch of ALTER TABLE commands in a database, you just edit the labels in the interface. That consistency then flows through to every single chart and dashboard built on top of that model.

Simplifying Complex Relationships

Let’s be honest, defining tricky relationships like many-to-many connections can be a real headache in raw SQL. A good BI tool simplifies this immensely. It provides dedicated interfaces for creating those necessary bridge tables or defining how different entities relate, often without you having to write a single line of code. This lets you accurately model complex, real-world business scenarios without the technical overhead.

Ultimately, these platforms are what turn the theoretical blueprint of your data model into a functional, interactive, and reliable foundation for all your analytics. They handle the technical grunt work, freeing up your team to focus on what actually matters: finding the insights that push the business forward.

Common Questions We Hear About Data Modeling

Even when you have a good handle on the theory, putting data modeling into practice brings up a whole new set of questions. Let's walk through some of the most common hurdles people face, so you can tackle your own projects with more confidence.

How Much Normalization is Too Much?

This is a classic. You know normalization is good for cutting down on redundant data, but it's easy to go overboard. Before you know it, you’ve got a model with dozens of tables, and analysts are stuck writing painfully complex queries with endless joins. The result? Query performance grinds to a halt.

Here's the approach I've seen work best: normalize for your transactional systems, but denormalize for analytics. Start with a solid, normalized model (like 3NF) to keep your source data clean and reliable. Then, for your reporting and BI layers, you can strategically denormalize by creating things like aggregated summary tables or clean star schemas. This gives you the best of both worlds—data integrity where it counts and speed when it’s time for analysis.

How Often Should I Update My Data Model?

Another question that comes up all the time is about the lifespan of a data model. Is it a "set it and forget it" kind of thing? Absolutely not. Think of your data model as a living document that needs to grow and change right alongside your business.

A good rule of thumb is to revisit your models at least quarterly. You should also plan a review whenever there's a major business shift. This could be anything from:

• Launching a new product line

• Expanding into a new market

• Overhauling a core business process

A static data model reflects a static business. As your company grows and adapts, your data model must adapt with it to remain relevant and useful.

If you don't, you'll inevitably run into "model drift." That's when your data structure no longer reflects what's actually happening in the business, which is a fast track to inaccurate reports and bad decisions.

What's the Difference Between a Data Model and a Database Schema?

Finally, a lot of people mix up "data model" and "database schema." While they're related, they aren't the same thing.

Here’s a simple analogy: The data model is the architect's blueprint. It lays out all the entities, how they relate to one another, and the business rules at a high, conceptual level.

The database schema is the construction plan. It’s the physical, hands-on implementation of that blueprint within a specific database system. The schema gets into the nitty-gritty, defining the actual tables, columns, data types, and indexes. You could take one logical data model and implement it as several different physical schemas, depending on the database technology you're using. Understanding this distinction makes for much clearer conversations between technical and business teams.
